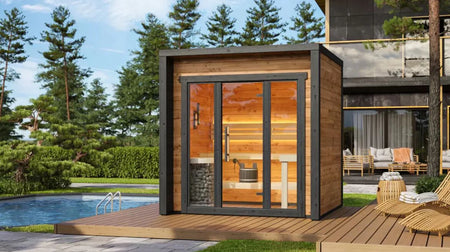

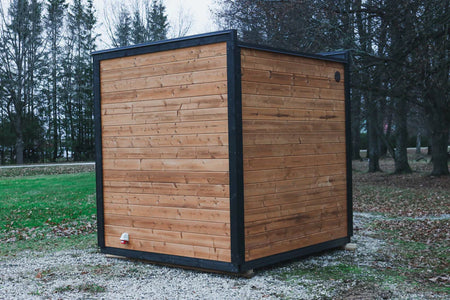

Patio XS - Thermowood outdoor sauna for 4 people

4 persons; S=4.1m² | V=8.6m³;

PIR insulation 30 mm;

40mm;  Thermowood;

  EPDM roof cover;

Tempered glass bronze / mirror.

        SET EQUIPMENT:

• Inside lighting: LED stripes behind back rests (top / bottom), below upper level of bench
• Outside lighting: black spots (4W)

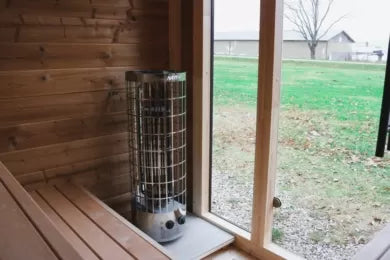

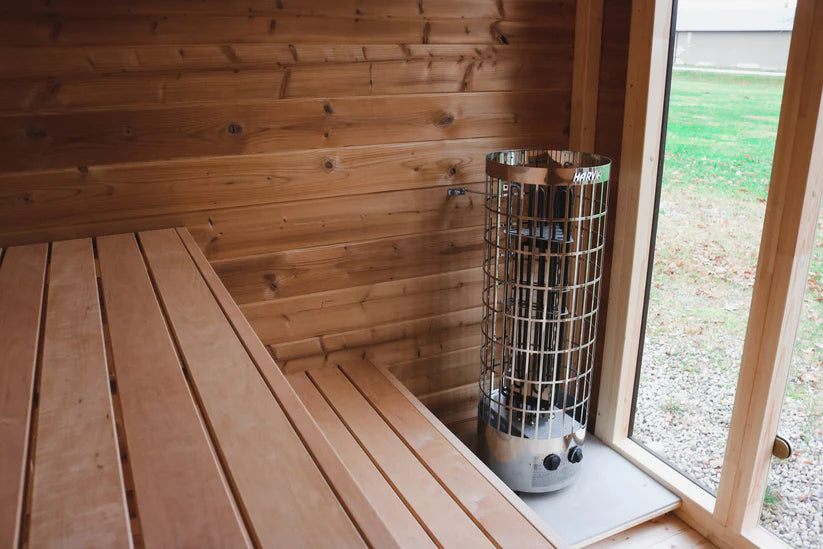

• Sauna heater with stones, protective steel bedding
• Control panel and chimney set depends of heater model




  CONSTRUCTION:



  • Floor: boards 24mm, spruce, built-in metal gutter
  • Roof: boards 24mm, EPDM cover, PIR insulation 30mm
  • Doors: full glass door, clear bronze, tempered 8mm
  • Windows: wooden frame, tempered glass 8mm, clear bronze, double glass

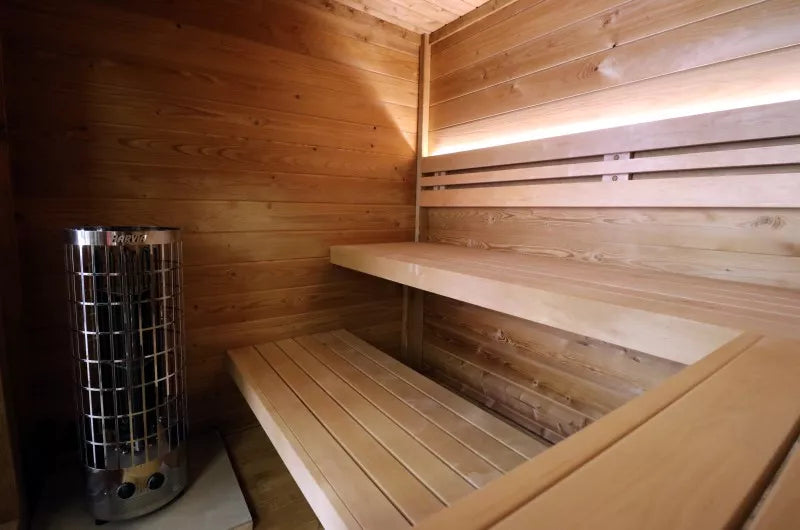

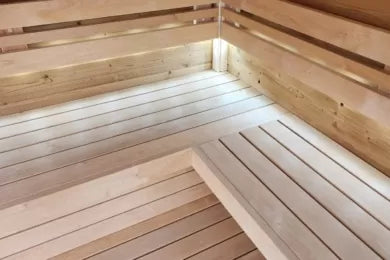

  • Benches: corner shaped, 2 levels, alder
  • Back rests: alder, 3 boards
  • Weight of wooden cabin - 850kg

  Preparing to assemble

  • Prepare a solid, level and horizontal platform for installing your sauna
  • Consider the weight and dimensions of the cabine
  • It is recommended to install the support frame on a waterproof material, for example, bitumen strips

  Assembling

  • The cabin frame is assembled from preprepared parts in accordance with the instructions
  • Then the floor, roof, windows and doors, benches are installed

  Maintenance

  • Surfaces and details of the sauna are treated with special substances before initial use and also once or twice a year in the future
  • For detailed information about maintenance of the cabin, see the attached manual.
